Pit-type Gas Nitriding Furnaces

Product Description:

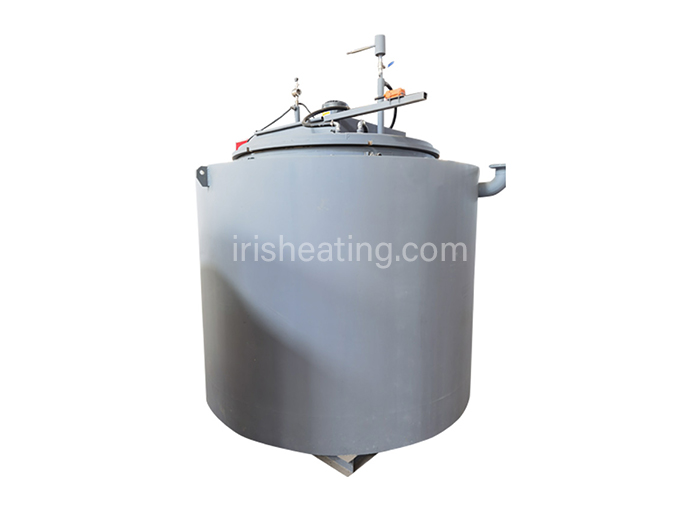

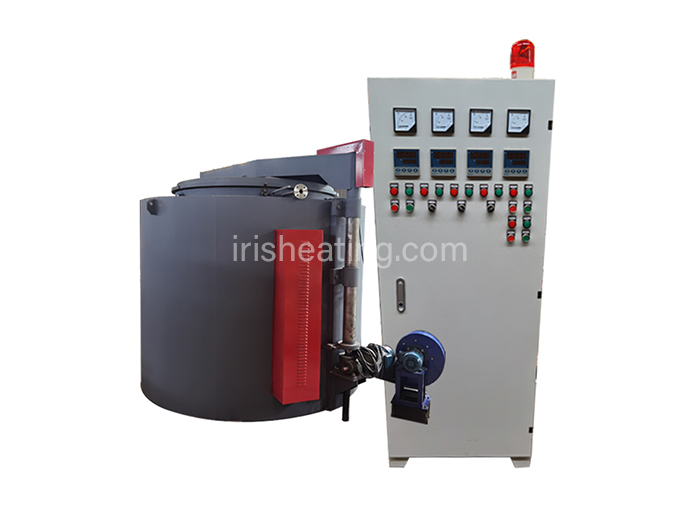

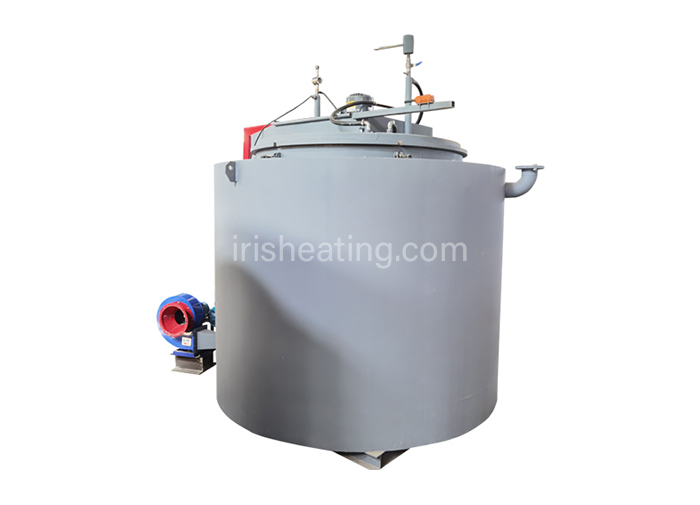

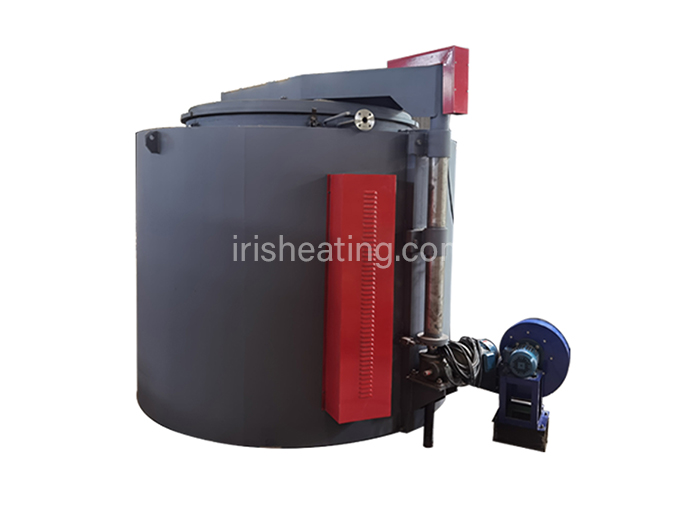

Pit-type gas nitriding furnaces are used for gas nitriding of carbon steel parts and can also perform gas nitriding and carburizing (soft nitriding) treatment. They consist of a furnace shell, furnace lining, furnace cover lifting mechanism, furnace sealing fan, muffle tank, heating elements, and electrical control system. The furnace shell is welded from steel plates and structural steel, while the furnace lining is an energy-saving composite structure constructed from high-strength, ultra-lightweight, energy-saving refractory bricks, aluminosilicate fiber, diatomaceous earth insulating bricks, and asbestos board.

Product Features

1. Can use new energy-saving furnace linings, rapid heating, low heat loss, and good furnace temperature uniformity, especially suitable for heat treatment of shaft-type workpieces;

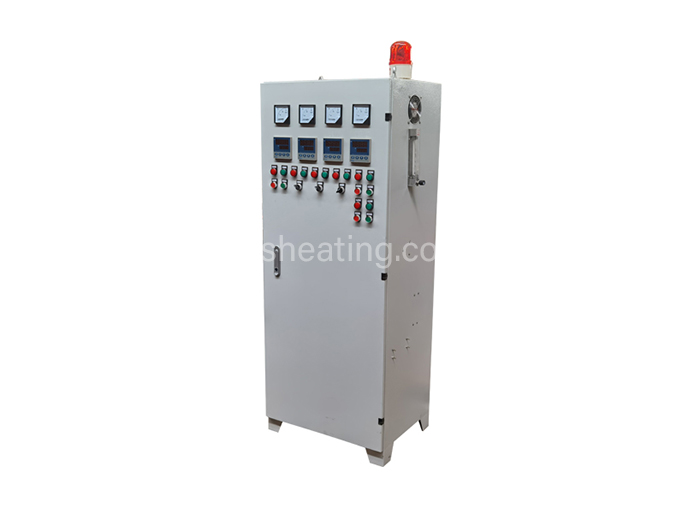

2. Employs intelligent microcomputer instruments, allowing furnace temperature settings according to process requirements, automatic tracking and display, and PLC program control;

3. Multiple temperature and atmosphere controls, upper and lower microcomputer network, and the addition of robotic arms enable fully automated control, recording, workshop group control, and minimal or no human operation.

Basic Parameters

model	rated power（Kw）	Rated temperature （℃）	loading capacity (Kg)	Empty furnace wear (Kw)	Empty furnace heating time	Furnace temperature uniformity
RN2-20-6	20	650	160	≤7.5	≤2.5	±5
RN2-30-6	30	650	200	≤10	≤2.5	±5
RN2-45-6	45	650	300	≤15	≤2.5	±5
RN2-60-6	60	650	630	≤17	≤2.5	±5
RN2-75-6	75	650	750	≤20	≤2.5	±5
RN2-90-6	90	650	1450	≤25	≤3.5	±5
RN2-105-6	110	650	1800	≤30	≤3.5	±5
RN2-140-6	140	650	2100	≤40	≤3.5	±5

project	unit	25A	50A	75A	100A
Ultimate vacuum	Pa	6.67
Pressure rise rate	Pa/min	0.0133
vacuum pump	pc	2x-4	2x-8	2x-8	2x-8
vacuum pump	pc	2x-4	2x-8	2x-8	2x-15
Furnace chamber size	mm	Φ760*800	Φ1060*950	Φ920*1200	Φ1100*1200
Maximum heating area	cm²	1.25*104	2.5*104	3.5*104	5*104
loading capacity	Kg	600	800	1000	1200
Maximum operating temperature	℃	650	650	650	650
