Product Description

The melting furnace burner is mainly used in smelting or melting all kinds of metal. That include iron, steel, aluminum, copper, brass, bronze, silver, gold, etc. It can also be used in the heating treatment of metal. Our electric induction metal melting furnace can be safely applied in all kinds of workplaces and even at home. You can use them at your house, in the exhibition room, in the laboratory, in your factory workshop or in your store.

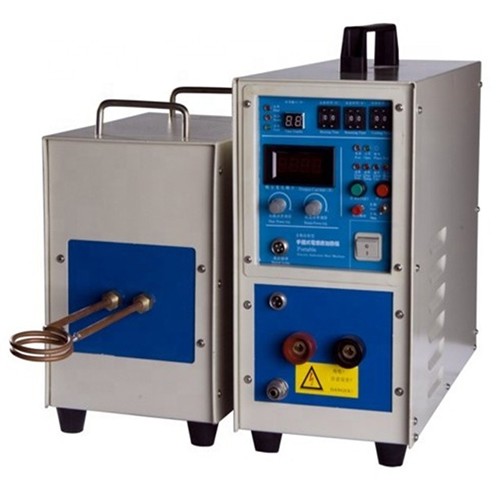

 high frequency induction heat treatment furnace

Main Features
1. High efficiency, you just need a few minutes to melt a small batch of metal.

2. Energy-savinig, high stability, safe.

3. 24 hours continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment, automatic frequency conversion tracking.
5. Automatic protection against all sorts of functional deficiency to ensure equipment reliability.
6. Manually and automatically adjust to improve the heating quality of the workpiece.

7. Customizable capacity to meet your production needs.

1ton induction melting furnace 3

Besides high functionality and high efficiency, our induction furnace for aluminum foil hot melt can also be easily operated. The machines can pair with all sorts of crucible to melt different metal, from clay graphite crucible, magnesium oxide crucible, to silicon carbide crucible.

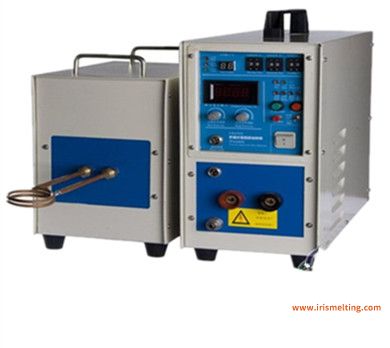

 high frequency induction heat treatment furnace






The sizes of our products are customizable, the table below contains the default versions, please contact us for adjustments. We can also provide cooling device, as our clients demands.
Type Max Input Power Frequency Input Electric Current Input Voltage Output Voltage Cooling Water Requirements
IRIS-HF15 15kw 30-80KHZ 200-600A 2x220V(50-60hz) 5-36V 0.2MPA, 1-3L/min
IRIS-HF25 25kw 200-1000A 3x380V(50-60hz) 0.2MPA, 2-5L/min
IRIS-HF45 45kw 68A

3 phase

380V(50-60hz)

≥ 0.2MPA, ≥5L/min

Crucible Parameters
Type Crucible Diameter Aluminum / Stainless Steel / Iron Copper / Brass
#15 O.D 85x165 mm 3 kg 10 kg
#25 O.D 118x180 mm 5 kg 20 kg
#35 O.D 130x225 mm 10 kg 30 kg
#45 O.D 150x300 mm 18 kg 50 kg
#70 O.D 175x325 mm 25 kg 100 kg
#90 O.D 195x390 mm 40 kg 120 kg
#110 O.D 210x400 mm 50 kg 150 kg
#160 O.D 265x465 mm 100 kg 250 kg
