Roller heat treatment furnace

Metal tempering bottom rolling furnace

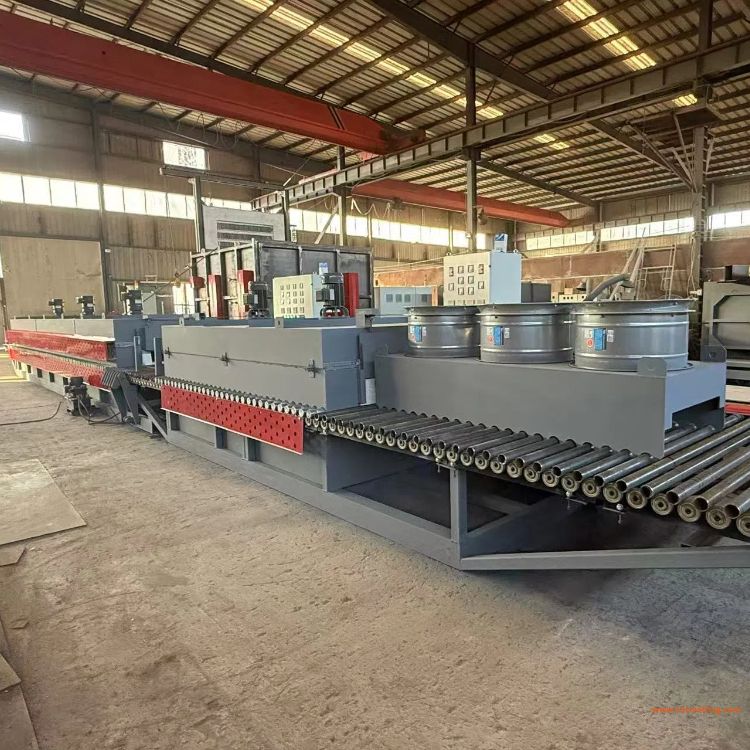

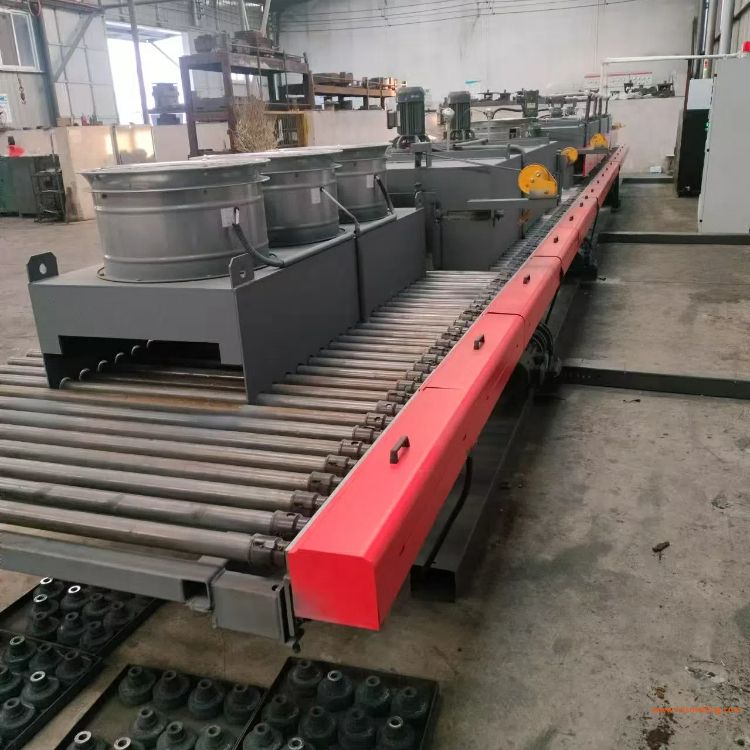

The roller bottom furnace is a continuous furnace in which the charge is conveyed by rollers. The core structure of the roller bottom furnace includes the furnace roller and the corresponding transmission mechanism. The furnace rollers are usually arranged horizontally at the bottom of the furnace chamber and are driven to rotate by the transmission system, forming a continuous furnace charge conveying channel. This equipment is mainly used for heat treatment processing of metal materials, and its continuous design is suitable for large-scale production scenarios.


Category: Roller heat treatment furnace.
Tel: 0086-180-0388-8630
E-mail: karen@irisequipment.com

Product Description










































Heating power
150kw
Temperature control zone
 4
Distribution of heating elements
Up, down

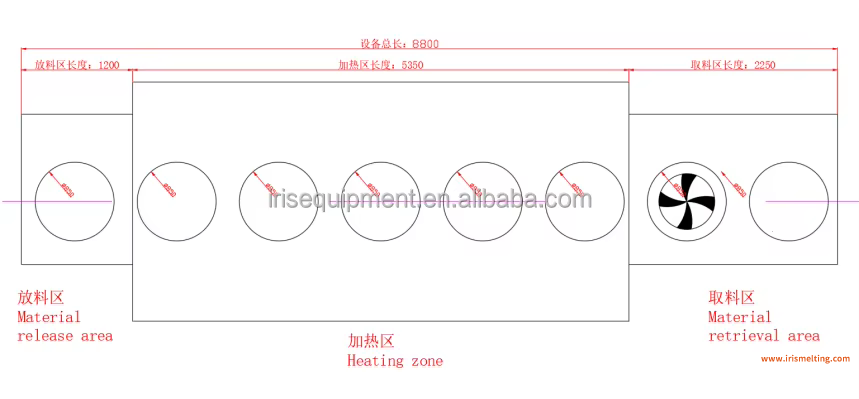

Feed length
1200mm(Non-heating zone)
Rated temperature
250℃  (Customizable)
External dimensions
8800*1990*2055mm
The thickness of the fire-resistant layer and insulation layer
230
Shell temperature
Not higher than the ambient temperature+20℃
System accuracy test:(SAT)
≤ ±5℃
Temperature uniformity test:(TUS)
≤±5℃
