The electromagnetic induction

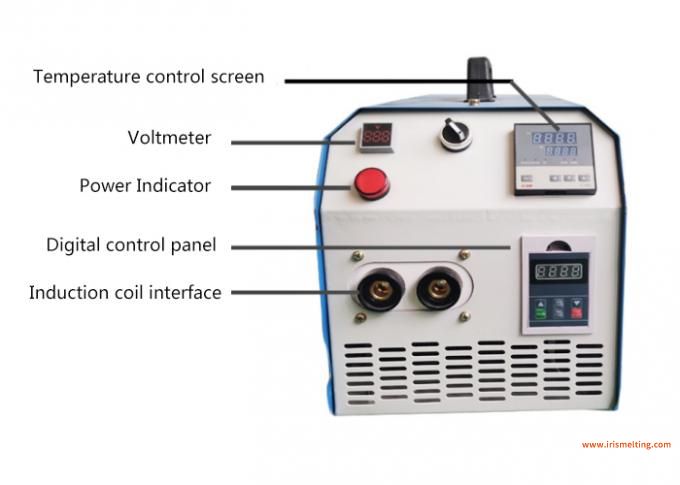

The electromagnetic induction thermal assembly/disassembly equipment mainly consists of two parts: a frequency converter digital power supply cabinet and an electromagnetic heating wire assembly.

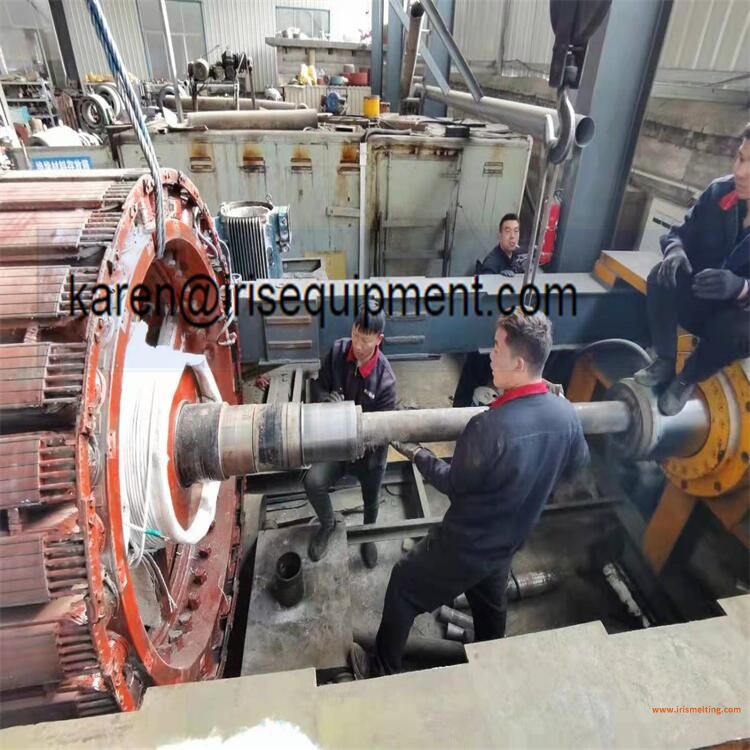

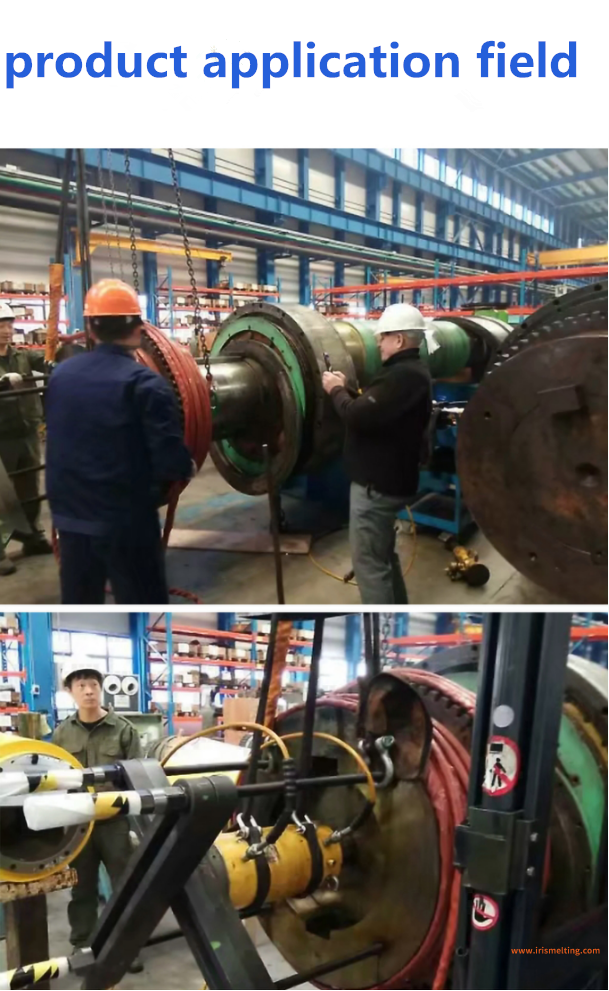

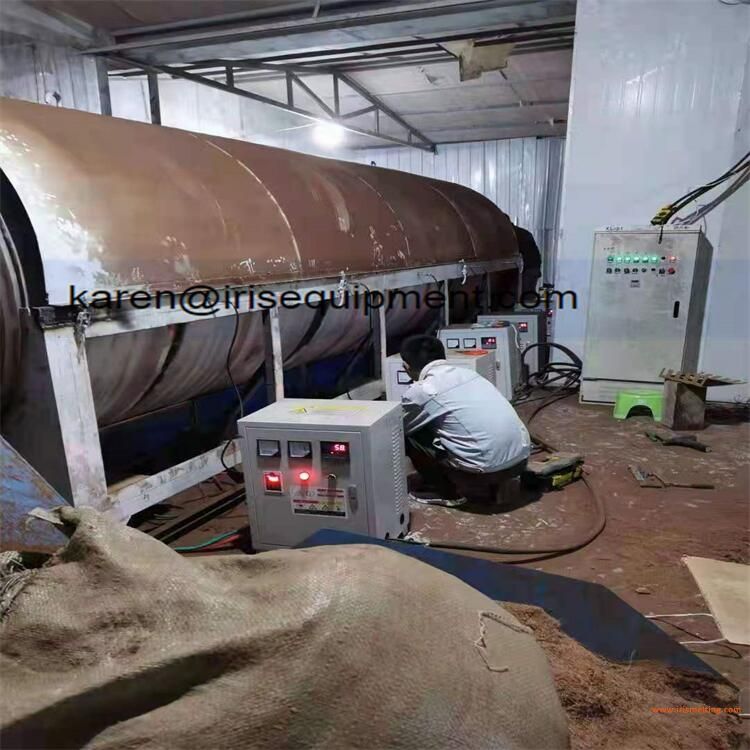

It is suitable for applications such as bearing heating, pipework, preheating for hot assembly and disassembly of large workpieces, through-heating forging, welding, quenching, heat treatment, small-scale smelting, etc. It boasts advantages such as wide applicability, adjustable power, high power factor, energy saving, convenient operation, superior performance, and reliable quality.
Category: The electromagnetic induction.
Tel: 0086-180-0388-8630
E-mail: karen@irisequipment.com
Send message to us

Product Description





Model IRIS-C20 IRIS-C30
Input voltage 3x380V±15% 50-60Hz 3x380V±15% 50-60Hz
Input voltage range 320-420V 320-420V
Input oscillation frequency 5-20KHz 5-20KHz
Impedance matching level 3-5 Level 3-5 Level
Machine weight about 35kg about 35kg
Heating oscillating current 12-30A 20-45A
Heating oscillating current 30A 50A
Maximum input power 20KW 30KW
Continuous operating power 15-20kwKW 20-30KW
Duty rate 100%(40℃ Room) 100%(40℃ Room)
Structure All in one All in one
Machine size 320*320*520 320*320*520





model IRIS-C40 IRIS-C50
Input voltage 3x380V±15% 50-60Hz 3x380V±15% 50-60Hz
Input voltage range 320-420V 320-420V
Input oscillation frequency 5-20KHz 5-20KHz
Impedance matching level 3-5 Level 3-5 Level
Machine weight 65kg 65kg
Heating oscillating current 20-80A 75A
Heating oscillating current 65A 75A
Maximum input power 40KW 50KW
Continuous operating power 30-40KW 30-50KW
Duty rate 100%(40℃ Room) 100%(40℃ Room)
structure All in one All in one
Machine size(mm) 800*700*550 800*700*550




Model IRIS-C80 IRIS-C100
Input voltage 3x380V±15% 50-60Hz 3x380V±15% 50-60Hz
Input voltage range 320-420V 320-420V
Input oscillation frequency 5-20KHz 5-20KHz
Impedance matching level 3-5 Level 3-5 Level
Machine weight 45KG 55KG
Heating oscillating current 45-175A 100-210A
Heating oscillating current 120A 150A
Maximum input power 80KW 100KW
Continuous operating power 30-80KW 30-100KW
Duty rate 100%(40℃ Room) 100%(40℃ Room)
Structure All in one All in one
Machine size(mm) 700*1000*600 700*1000*600
